Series Number
|
CPV10-K2
|
|
Description
|
Metal Oxide Varistor Current Protected type 10mm 250A
|
|
Lead Free Status / RoHS Status
|
Lead free / RoHS Compliant
|
|
Compliance
|
UL1449
|
|
Additional Information
|
UL/cUL Safety Approved: Certification No: E326004
|
Product Characteristics
| Max Continuous Voltage | 130 Vac ~485 Vac |
| Max Continuous Voltage | 170 VDC~640 VDC |
| Solderable Characteristics | Per MIL-STD-202, method 208E |

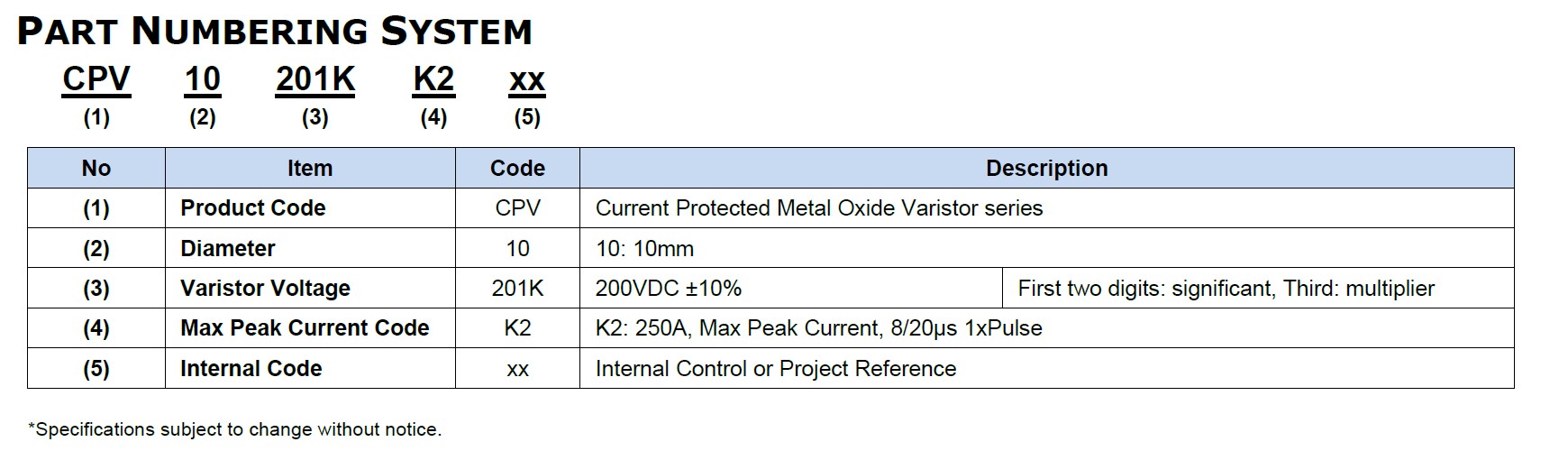

| Product Code | CPV/Current Protected Metal Oxide Varistor series |
| Diameter | 10: 10mm |
| Internal Code | xx |
| Application | General voltage driver and rectifier |
| Varistor Voltage | 201K :200VDC ±10% |
| Max Peak Current | K2: 250A, Max Peak Current, 8/20μs 1xPulse |
| Varistor DC Voltage (at 1mA) | 200(185~225) V~ 780(702~858) V |
| Max Energy (2ms) | 7 J~25 J |
| Typical Capacitance @1kHz | 150 pF~625pF |
| Abnormal Overvoltage Surge Protection | Typical Reaction Time 10 sec |
| Abnormal Overvoltage Surge Protection | Imax 40 A |
| Max Peak Current(8/20µs) | 250A (1x Pulse) ,150 A (15 x Pulse) |
| Max Clamping Voltage (8/20µs) | Vc :410V~1290V |
| Max Clamping Voltage (8/20µs) | Ip: 25A |
| Part Status | Active |
