Series Number
|
TPSMA
|
|
Description
|

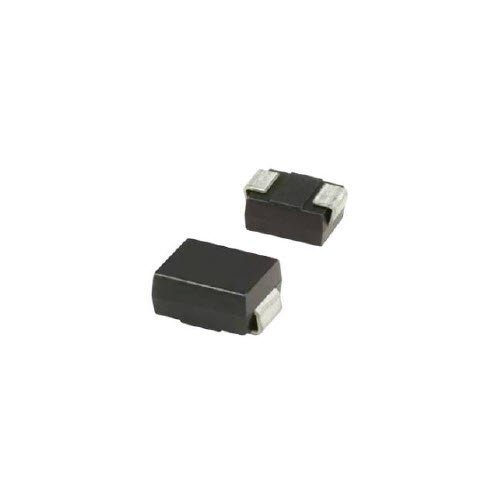

Transient Voltage Suppressors – DO-214AC SMA Type – AECQ101
|
|
Lead Free Status / RoHS Status
|
Lead free / RoHS Compliant
|
|
Moisture Sensitivity Level (MSL)
|
1 (Unlimited)
|
|
Additional Information
|
AEC-Q101 Qualified
|
Product Characteristics
| Peak Power Dissipation (@10/1000us) | 400W |
| Peak Forward Surge Current | 40A |
| Peak Reverse Voltage | 10.2 ~ 85.5V |
| Reverse Surge Current (Max.) (@10/1000us) | 2.92 ~ 23.95A |
| Operating Temperature | -55 ~ 150 °C |
| Package / Case | DO-214AC/SMA |
| Applications | AEC-Q101, Automotive |
| Mounting Type | Surface Mount |
| Voltage – Breakdown (Min.) | 11.4 ~ 95V |
| Reverse Leakage Current (Max.) | 1 ~ 5uA |
| Clamping Voltage (Max.) | 16.7 ~ 137V |
| Unidirectional Channels | Uni-/Bi-directional |
| Lead Style | – |
| Features | Fast Response Time |
| Ratings | UL 94V-0 |
| Series | TPSMA |
| Packaging | Tape and Reel |
| Part Status | Active |
