Series Number
|
SMB10J
|
|
Description
|

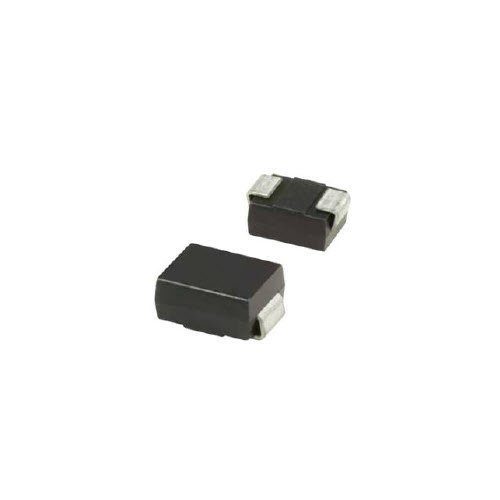

Transient Voltage Suppressors – DO-214AA SMD Type
|
|
Lead Free Status / RoHS Status
|
Lead free / RoHS Compliant
|
|
Moisture Sensitivity Level (MSL)
|
1 (Unlimited)
|
|
Additional Information
|
UL Rating: 94V-0
|
Product Characteristics
| Peak Power Dissipation (@10/1000us) | 1000W |
| Power Dissipation on Infinite Heatsink | 5W |
| Peak Reverse Voltage | 5.0 ~ 120.0V |
| Reverse Breakdown Voltage | 6.4 ~ 133.0V |
| Operating Temperature | -55 ~ 150 °C |
| Package / Case | DO-214AA |
| Applications | General Purpose |
| Mounting Type | Surface Mount |
| Test Current | 1 ~ 10mA |
| Max Reverse Leakage Current | 1 ~ 800uA |
| Maximum Clamping Voltage | 9.20 ~ 193V |
| Unidirectional Channels | Uni/Bi – Directional |
| Lead Style | – |
| Features | Very Fast Response Time |
| Ratings | UL 94V-0 |
| Series | SMB10J |
| Packaging | Tape and Reel |
| Part Status | Active |
