Series Number
|
SA-E
|
|
Description
|

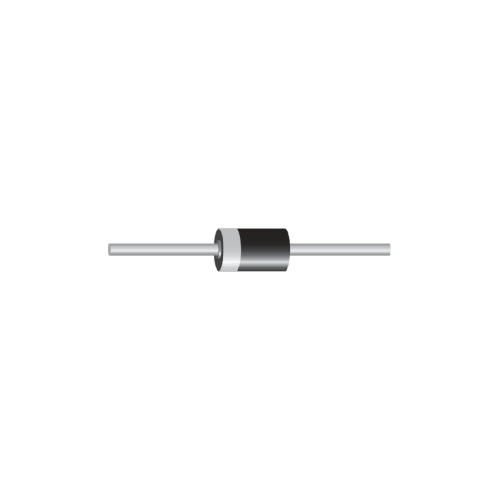

Transient Voltage Suppressors – DO15 Leaded Type
|
|
Lead Free Status / RoHS Status
|
Lead free / RoHS Compliant
|
|
Moisture Sensitivity Level (MSL)
|
1 (Unlimited)
|
|
Additional Information
|
UL 94V-0
|
Product Characteristics
| Peak Power Dissipation (@10/1000us) | 500W |
| Peak Forward Surge Current | 70A |
| Peak Reverse Voltage | 5 ~ 220V |
| Reverse Surge Current (Max.) | 1.3 ~ 54.3A |
| Operating Temperature | -55 ~ 175 °C |
| Package / Case | DO-204AC/DO-15 |
| Applications | General Purpose |
| Mounting Type | Through Hole |
| Voltage – Breakdown (Min.) | 6.4 ~ 242V |
| Reverse Leakage Current (Max.) | 5 ~ 1200uA |
| Clamping Voltage (Max.) | 9.2 ~ 394V |
| Unidirectional Channels | Uni-/Bi-directional |
| Lead Style | Axial Leaded |
| Features | Fast Response Time |
| Ratings | UL 94V-0 |
| Series | SA-E |
| Packaging | Tape and Reel, Ammo |
| Part Status | Active |
