Series Number
|
3KP
|
|
Description
|

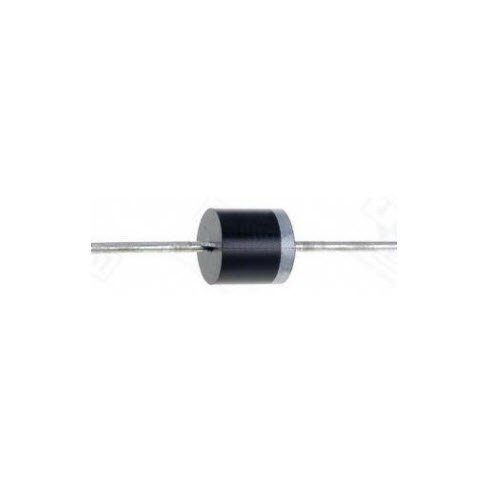

Transient Voltage Suppressors – P600 Leaded Type
|
|
Lead Free Status / RoHS Status
|
Lead free / RoHS Compliant
|
|
Moisture Sensitivity Level (MSL)
|
1 (Unlimited)
|
|
Additional Information
|
UL/cUL E223045
|
Product Characteristics
| Peak Power Dissipation (@10/1000us) | 3000W |
| Peak Forward Surge Current | 300A |
| Peak Reverse Voltage | 5.0 ~ 220.0V |
| Reverse Surge Current (Max.) (@10/1000us) | 8.4 ~ 326.1A |
| Operating Temperature | -55 ~ 175 °C |
| Package / Case | P600 |
| Applications | General Purpose |
| Mounting Type | Through Hole |
| Voltage – Breakdown (Min.) | 6.40 ~ 246.0V |
| Reverse Leakage Current (Max.) | 2 ~ 5000uA |
| Clamping Voltage (Max.) | 9.2 ~ 356.0V |
| Unidirectional Channels | Uni-/Bi-directional |
| Lead Style | Axial Leaded |
| Features | Low Incremental Surge Resistance |
| Ratings | UL E223045 |
| Series | 3KP |
| Packaging | Tape and Reel, Ammo |
| Part Status | Active |
