Series Number
|
30KPA
|
|
Description
|

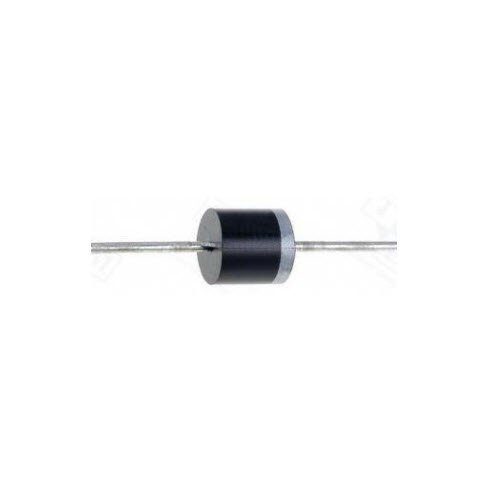

Transient Voltage Suppressors – P600 Leaded Type
|
|
Lead Free Status / RoHS Status
|
Lead free / RoHS Compliant
|
|
Moisture Sensitivity Level (MSL)
|
1 (Unlimited)
|
|
Additional Information
|
UL/cUL E223045
|
Product Characteristics
| Peak Power Dissipation (@10/1000us) | 30000W |
| Peak Forward Surge Current | 400A |
| Peak Reverse Voltage | 28.0 ~ 288.0V |
| Reverse Surge Current (Max.) (@10/1000us) | 64.5 ~ 606.0A |
| Operating Temperature | -55 ~ 175 °C |
| Package / Case | P600 |
| Applications | General Purpose |
| Mounting Type | Through Hole |
| Voltage – Breakdown (Min.) | 31.28 ~ 321.70V |
| Reverse Leakage Current (Max.) | 2 ~ 5000uA |
| Clamping Voltage (Max.) | 50.0 ~ 469.9V |
| Unidirectional Channels | Uni-/Bi-directional |
| Lead Style | Axial Leaded |
| Features | Low Incremental Surge Resistance |
| Ratings | UL E223045 |
| Series | 30KPA |
| Packaging | Tape and Reel, Ammo |
| Part Status | Active |
