Series Number
|
P4KE
|
|
Description
|

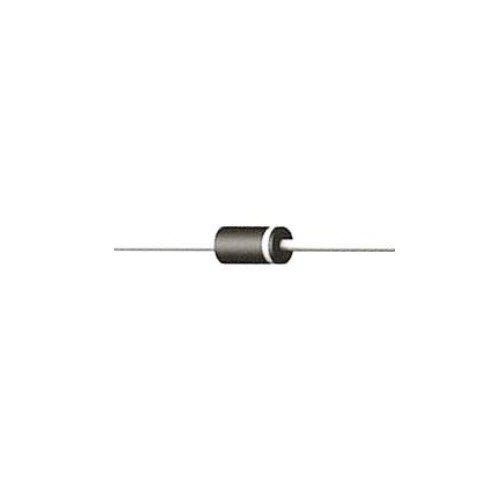

Transient Voltage Suppressors – DO204AL, DO41 Leaded Type
|
|
Lead Free Status / RoHS Status
|
Lead free / RoHS Compliant
|
|
Moisture Sensitivity Level (MSL)
|
1 (Unlimited)
|
|
Additional Information
|
UL/cUL E223045
|
Product Characteristics
| Peak Power Dissipation (@10/1000us) | 400W |
| Peak Forward Surge Current | 40A |
| Peak Reverse Voltage | 5.8 ~ 467.0V |
| Reverse Surge Current (Max.) (@10/1000us) | 0.52 ~ 39.0A |
| Operating Temperature | -55 ~ 175 °C |
| Package / Case | DO-204AL/DO-41 |
| Applications | General Purpose |
| Mounting Type | Through Hole |
| Voltage – Breakdown (Min.) | 6.45 ~ 522.50V |
| Reverse Leakage Current (Max.) | 1 ~ 1000uA |
| Clamping Voltage (Max.) | 10.5 ~ 760.0V |
| Unidirectional Channels | Uni-/Bi-directional |
| Lead Style | Axial Leaded |
| Features | Low Zener Impedance |
| Ratings | UL/cUL E223045 |
| Series | P4KE |
| Packaging | Tape and Reel, Ammo |
| Part Status | Active |
