Series Number
|
SB520~SB5200
|
|
Description
|

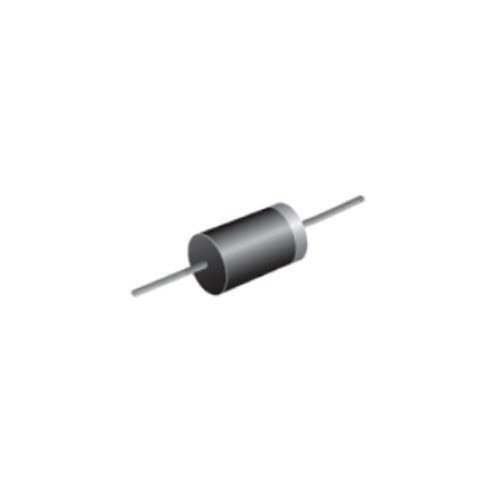

Schottky Barrier Rectifier – 5.0A DO-201AD Package
|
|
Lead Free Status / RoHS Status
|
Lead free / RoHS Compliant
|
|
Moisture Sensitivity Level (MSL)
|
1 (Unlimited)
|
|
Additional Information
|
–
|
Product Characteristics
| Max Reverse DC Voltage | 20 ~ 200V |
| Max Forward Current | 5.0A |
| Max Forward Voltage | 0.55 ~ 0.95V |
| Peak Forward Surge Current | 100.0A |
| Operating Temperature | -55 ~ 150 °C |
| Package / Case | DO-201AD |
| Applications | General Purpose |
| Mounting Type | Through Hole |
| Max Reverse Current @ 25?C | 0.5mA |
| Thermal Resistance | 25.0 °C/W |
| Junction Capacitance | 380pF |
| Storage Temperature | -55 ~ 150 °C |
| Leaded Type | Axial Leaded |
| Features | High Surge Capability |
| Ratings | – |
| Series | SB520~SB5200 |
| Packaging | Tape and Reel |
| Part Status | Active |
