Part Number
|
RFC10M7-S series
|
|
Description
|
SMD Ceramic Filter 10.7MHz 3.45×3.1×1.4mm
|
|
Lead Free Status / RoHS Status
|
RoHS Compliant
|
|
Moisture Sensitivity Level (MSL)
|
1 (Unlimited)
|
|
Additional Information
|
–
|
Product Characteristics
| Center Frequency | 10.700MHz ± 30KHz |
| Temperature Characteristic | ±0.5% (–20°C to 80°C) |
| Input/Output Impedance | 330Ω |
| Withstanding Voltage | 50VDC at 60 sec |
| Operating Temperature | -40 ~ +85°C |
| Storage Temperature | -55°C to 85°C |
| Applications | FM Receiver |
| Insulation Resistant | 100MΩ Min at 10V, 60sec |

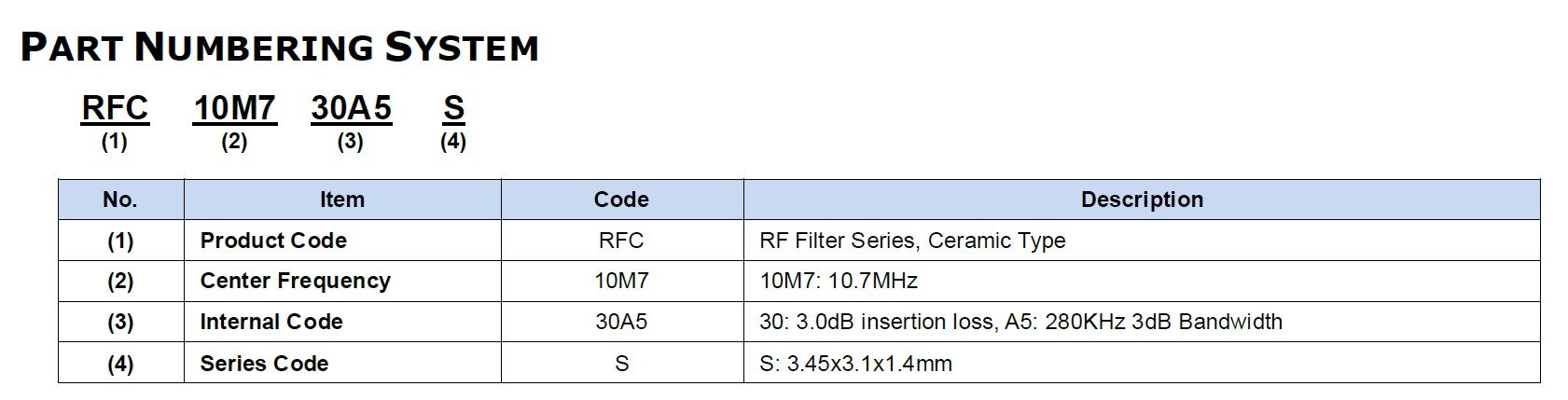

| Product Code | RFC |
| Internal Code | 30A5 |
| 3dB Band Width (KHz) | 180± 40~330 ± 50 KHz |
| Insertion Loss (dB) Max | 4.5 ± 2.0~3.0 ± 2.0 |
| Ripple Within 3dB BW (dB) Max | 1.0 |
| Features | Compact Construction Design Enabling Flexible PCB Footprint |
| Size / Dimension | 3.45×3.1×1.4mm |
| Series | S |
| Packaging | Tape & Reel |
| Part Status | Active |
