Series Number
|
MLS
|
|
Description
|

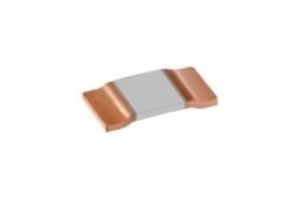

Metal Alloy Resistors – Shunt Type
|
|
Lead Free Status / RoHS Status
|
Lead free / RoHS Compliant
|
|
Moisture Sensitivity Level (MSL)
|
1 (Unlimited)
|
|
Additional Information
|
–
|
Product Characteristics
Product Characteristics
| Resistance | 0.2 ~ 5mΩ |
| Tolerance | ±1%, ±2%, ±5% (options available) |
| Power (Watts) | 2 ~ 15W |
| Temperature Coefficient | ≤±50 ~ 300PPM/°C |
| Operating Temperature | -65 ~ 170°C |
| Package / Case | 1206, 2512, 3920, 5930 |
| Applications | Automotive, AECQ200 |
| Mounting Type | Surface Mount |
| Size / Dimension | – |
| Height – Seated (Max) | 1.98mm |
| Thickness (Max) | 1.48 mm |
| Lead Spacing | – |
| Lead Style | – |
| Features | Current Sensing Low Resistance Type |
| Composition | Metal Alloy |
| Series | MLS |
| Packaging | Tape and Reel |
| Part Status | Active |
