Series Number
|
MPSR
|
|
Description
|

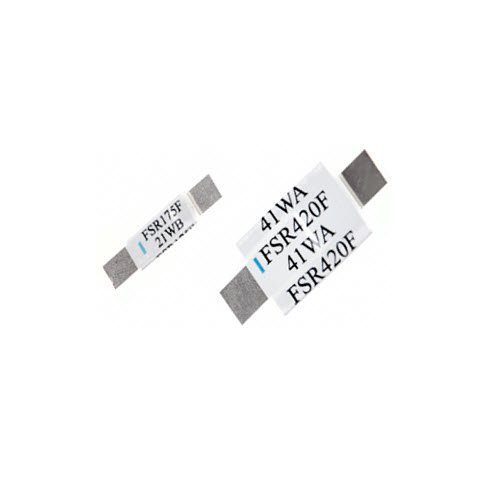

Polymer Resettable Fuse – Strap PTC
|
|
Lead Free Status / RoHS Status
|
Lead free / RoHS Compliant
|
|
Moisture Sensitivity Level (MSL)
|
1 (Unlimited)
|
|
Additional Information
|
–
|
Product Characteristics
Product Characteristics
| Resistance – Initial (Ri) (min.) | 0.085Ω |
| Resistance – Post Trip (R1) (max.) | 0.22Ω |
| Voltage – Max | 15V / 30V |
| Max Time to Trip | 3.0~6.0 sec at 5*Ih |
| Operating Temperature | -40 ~ 85°C |
| Package / Case | Strap |
| Applications | Rechargeable Battery Packs, Lithium Cell |
| Mounting Type | Strap |
| Current – Max | 100A |
| Current – Hold (Ih) (max.) | 1.2 ~ 4.2A |
| Current – Trip (It) | 2.7A |
| Lead Spacing | – |
| Size / Dimension | – |
| Features | Low profile, Solid state |
| Ratings | UL/cUL E223037 |
| Series | MPSR |
| Packaging | Bulk |
| Part Status | Active |
