MFT90N6T220
Description
Product Characteristics
| Part Number | MFT90N6T220 |
| FET-Type | N |
| Description | Mosfet N 900V 6A 192W TO-220 |
| Drain to Source Voltage (Vdss) | 900V |
| Continuous Drain Current (Id) @ 25°C | 6A |
| Rds On (Max) @ Id, Vgs | 2300mΩ |
| Gate Charge (Qg) (Max) @ Vgs | 23.6nC |
| Input Capacitance (Ciss) (Max) @ Vds | 915pF |
| Power Dissipation (Max) | 192W |
| Operating Temperature | -55 ~ 150°C |
| Application | General Purpose |
| Mounting Type | Through Hole |

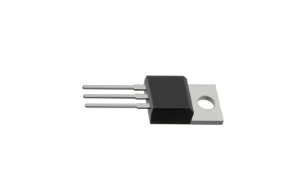

| Package / Case | TO-220 |
| Packaging | Tube |
Environmental Classifications
| RoHS Status | ROHS Compliant |
| REACH Status | REACH Unaffected |
