MFT4N200T220
Description
Product Characteristics
| Part Number | MFT4N200T220 |
| FET-Type | N |
| Description | Mosfet N 40V 200A 166W TO-220 |
| Drain to Source Voltage (Vdss) | 40V |
| Continuous Drain Current (Id) @ 25°C | 200A |
| Rds On (Max) @ Id, Vgs | 2.3mΩ |
| Gate Charge (Qg) (Max) @ Vgs | 235nC |
| Input Capacitance (Ciss) (Max) @ Vds | 6120pF |
| Power Dissipation (Max) | 166W |
| Operating Temperature | -55 ~ 150°C |
| Application | General Purpose |
| Mounting Type | Through Hole |

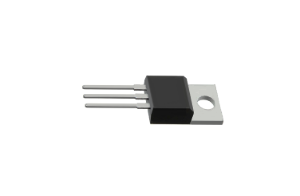

| Package / Case | TO-220 |
| Packaging | Tube |
Environmental Classifications
| RoHS Status | ROHS Compliant |
| REACH Status | REACH Unaffected |
