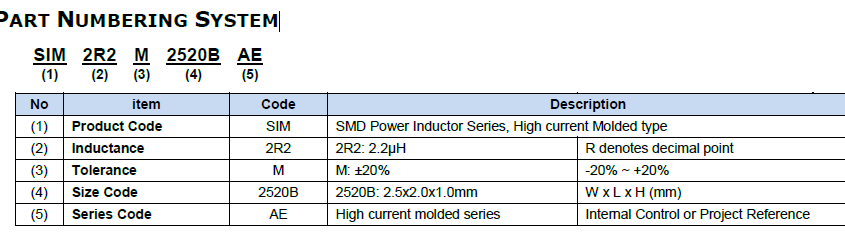

Part Number
|
SIMR33M2520BAE
|
|
Description
|
0.33µH 11mΩ SMD Power Inductor
|
|
Lead Free Status / RoHS Status
|
Lead free / RoHS Compliant
|
|
Moisture Sensitivity Level (MSL)
|
1 (Unlimited)
|
|
Additional Information
|
–
|
Product Characteristics
| Inductance (µH) | 0.33µH |
| Tolerance | ±20% |
| DC Resistance Typical | 11mΩ |
| DC Resistance Max | 13.2mΩ |
| Operating Temperature | -40 ~ 125 ˚C (including self-temperature rise) |
| Package / Case | 2520B |
| Applications | DC/DC Converters, Smart Phone, PAD, Power Supply |
| Mounting Type | Surface Mount |
| Saturation Current Typical | 7.8A |
| Saturation Current Max | 7.5A |
| Heat Rating Current Typical | 7A |
| Heat Rating Current Max. | 6.5A |
| Test Frequency | 100KHz |
| Height | 1mm |
| Size | 2.5X2X1mm |
| Series | SIM-2520BAE |
| Packaging | Tape and Reel |
| Part Status | Active |
