Series Number
|
SIM06-38
|
|
Description
|

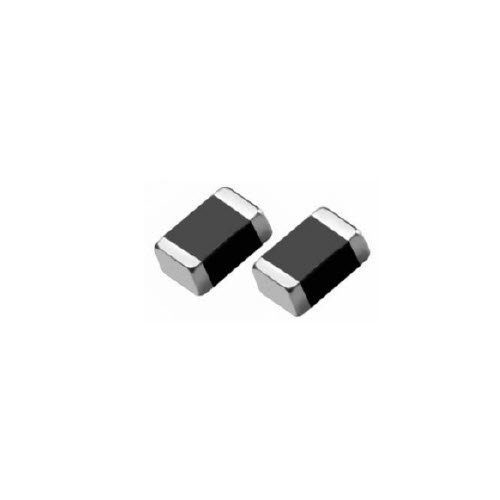

Ferrite Chip Bead General Type SMD
|
|
Lead Free Status / RoHS Status
|
Lead free / RoHS Compliant
|
|
Moisture Sensitivity Level (MSL)
|
1 (Unlimited)
|
|
Additional Information
|
–
|
Product Characteristics
| Impedance | 5 ~ 2000Ohm |
| Tolerance | +/-25% |
| DC Resistance (Max.) | 0.07 ~ 0.70Ohm |
| Rated Current (Max.) | 200 ~ 800mA |
| Operating Temperature | -55 ~ +125 degC |
| Package / Case | 1206 |
| Applications | General Purpose |
| Mounting Type | Surface Mount |
| Size / Dimension | – |
| Thickness (Max) | – |
| Test Frequency | 30 ~ 100MHz |
| Rating | – |
| Features | Low DC Resistance |
| Reel Size | – |
| Qty Per Reel (pcs) | – |
| Series | SIM06-38 |
| Packaging | Tape and Reel |
| Part Status | Active |
