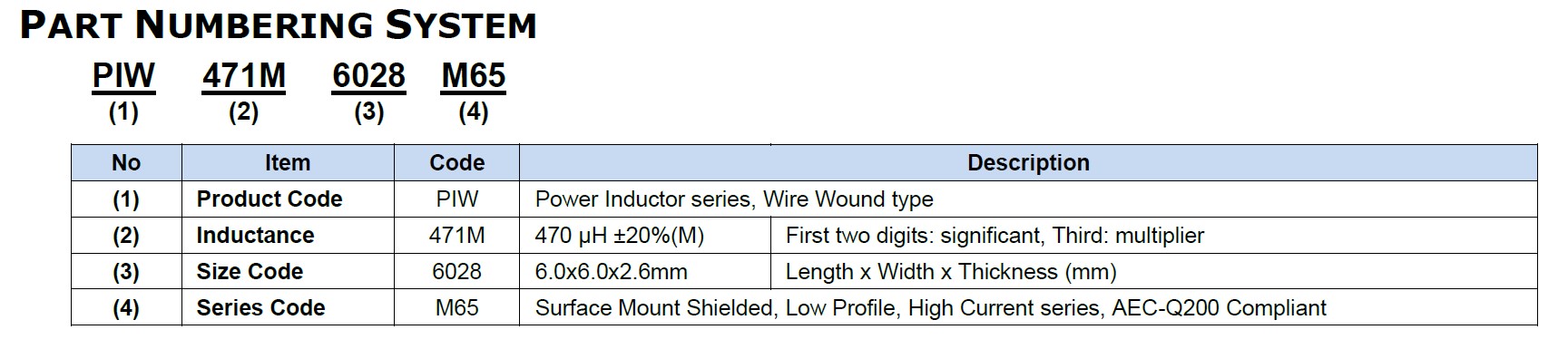

Part Number
|
PIW-6028M65
|
|
Description
|
Power Inductor
SMD Low Profile, High Current AEC-Q200 |
|
Lead Free Status / RoHS Status
|
Lead free / RoHS Compliant
|
|
Moisture Sensitivity Level (MSL)
|
1 (Unlimited)
|
|
Additional Information
|
–
|
Product Characteristics
Package / Case
| Inductance | 1~470 µH |
| Tolerance | K = ±10%, L = ±15%, M = ±20%, Y = ±30% |
| Test Frequency (Hz) | 100KHz/1V |
| Operating Temperature | -55 ~ 125 degC |
| Series Code | M65
Surface Mount Shielded, Low Profile, High Current series, AEC-Q200 Compliant |
| DC Resistance ±20% (DCR) | 10~2250 mΩ |
| Applications | DC/DC Converter,
Battery Powered Devices, Low Profile |
| Package / Case | 6028/ 6.0×6.0x2.6 mm |
