Part Number
|
PIW-5010M65
|
|
Description
|
Power Inductor
SMD Low Profile, High Current AEC-Q200 |
|
Lead Free Status / RoHS Status
|
Lead free / RoHS Compliant
|
|
Moisture Sensitivity Level (MSL)
|
1 (Unlimited)
|
|
Additional Information
|
–
|
Product Characteristics
Package / Case
| Inductance | 1~22 µH |
| Tolerance | ±20% |
| Test Frequency (Hz) | 1V100K |
| Operating Temperature | -55 ~ 125 degC |

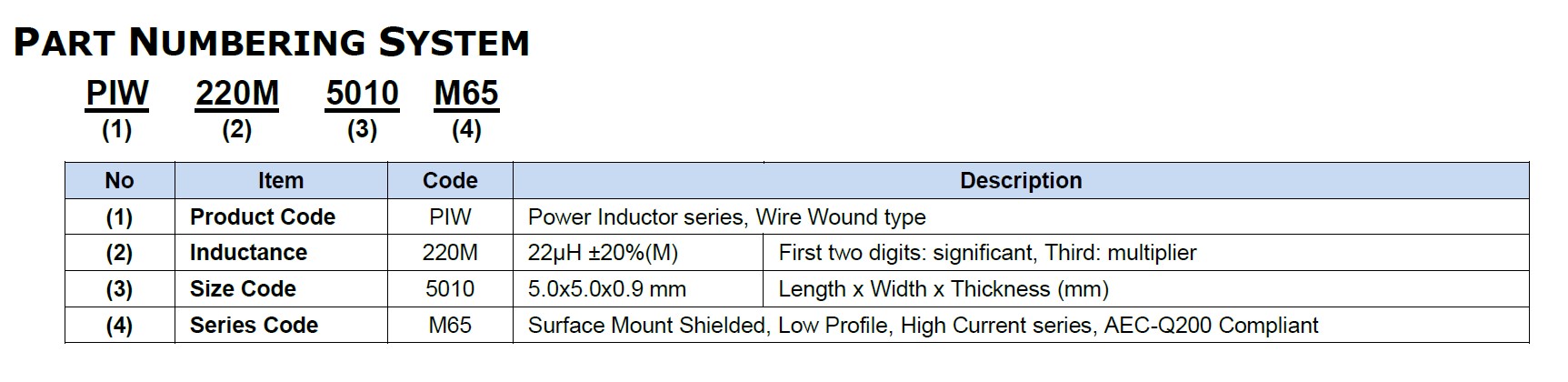

| Series Code | M65
Surface Mount Shielded, Low Profile, High Current series, AEC-Q200 Compliant |
| DC Resistance ±20% (DCR) | 64.8~720mΩ |
| Applications | DC/DC Converter,
Battery Powered Devices, Low Profile |
| Package / Case | 5010/ 5.0×5.0x0.9mm |
