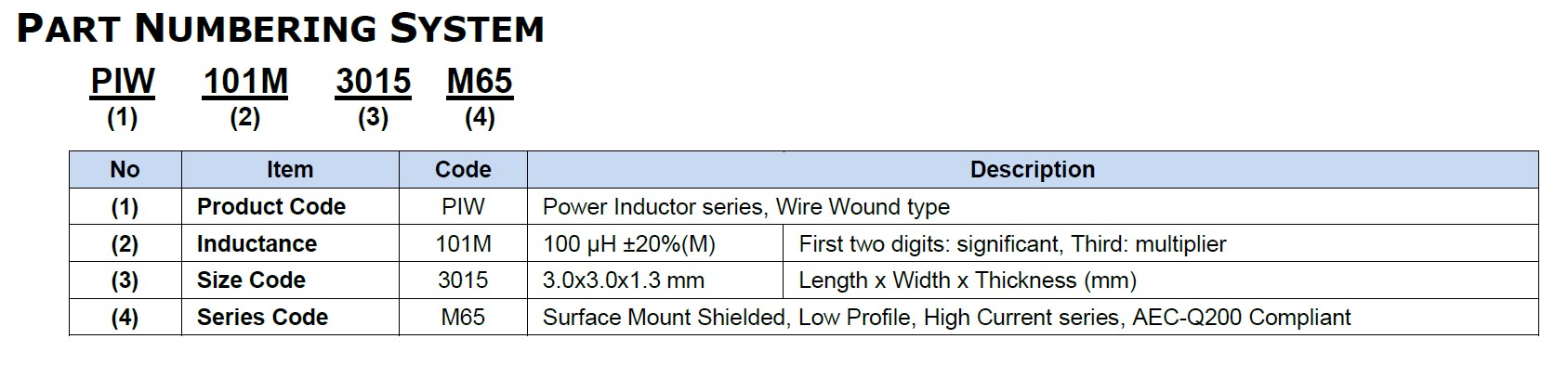

Part Number
|
PIW-3015M65
|
|
Description
|
Power Inductor
SMD Low Profile, High Current AEC-Q200 |
|
Lead Free Status / RoHS Status
|
Lead free / RoHS Compliant
|
|
Moisture Sensitivity Level (MSL)
|
1 (Unlimited)
|
|
Additional Information
|
–
|
Product Characteristics
| Inductance | 0.24~100µH |
| Tolerance | ±20% |
| Test Frequency (Hz) | 1V100K |
| Operating Temperature | -55 ~ 125 degC |
| Series Code | M65
Surface Mount Shielded, Low Profile, High Current series, AEC-Q200 Compliant |
| DC Resistance ±25% (DCR) | 16~4080 mΩ |
| Applications | DC/DC Converter,
Battery Powered Devices, Low Profile |
| Package / Case | 3015M/3.0 x 3.0 x 1.3mm |
