Part Number
|
HIS
|
|
Description
|

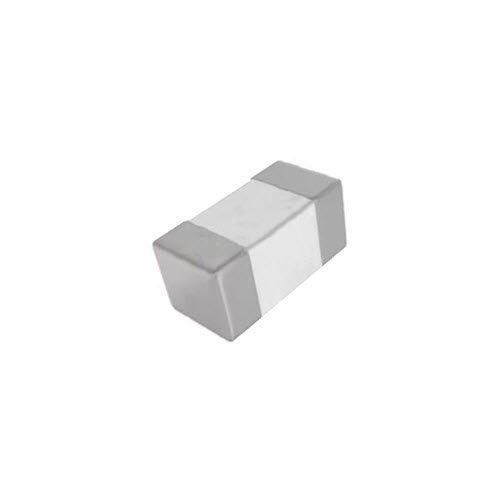

RF Inductor – Multilayer Ceramic Signal
|
|
Lead Free Status / RoHS Status
|
Lead free / RoHS Compliant
|
|
Moisture Sensitivity Level (MSL)
|
1 (Unlimited)
|
|
Additional Information
|
–
|
Product Characteristics
| Inductance | 1.0 ~ 680nH |
| Tolerance | +/-5%, +/-10%, +/-0.3nH |
| DC Resistance (Max.) | 0.05 ~ 7 ohm |
| Rated Current (Max.) | 50 ~ 500mA |
| Operating Temperature | -55 ~ 1255 degC |
| Package / Case | 0603, 0402 |
| Applications | RF Circuit in Telecommunication |
| Mounting Type | Surface Mount |
| Turns | – |
| Factor Q (Min.) | 8, 10, 12 |
| Test Frequency | 50, 100 MHz |
| SRF (Min.) | 0.25 ~ 10 GHz |
| Size / Dimension | 0402, 0603 |
| Features | High Self Resonant Frequency |
| Ratings | – |
| Series | HIS |
| Packaging | Tape and Reel |
| Part Status | Active |
