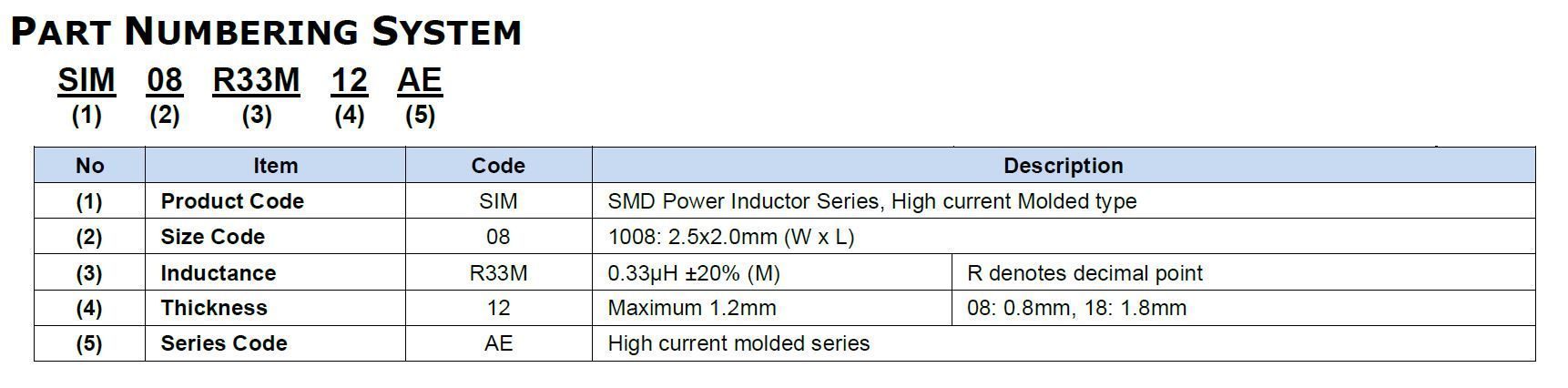

Series Number
|
SIM08-12AE
|
|
Description
|
SMD Power Inductor Series, High current Molded type
|
|
Lead Free Status / RoHS Status
|
Lead free / RoHS Compliant
|
|
Moisture Sensitivity Level (MSL)
|
1 (Unlimited)
|
Product Characteristics
| Inductance | 0.1 ~ 4.7µH |
| Tolerance | ±20% |
| DC Resistance Typical | 5.4 ~ 170mΩ |
| DC Resistance Max. | 6.5 ~ 204mΩ |
| Operating Temperature | -40 ~ 125 ˚C (including self-temperature rise) |
| Package / Case | 2520B |
| Applications | DC/DC Converters, Smart Phone, PAD, Power Supply |
| Mounting Type | Surface Mount |
| Saturation Current Typical | 2.8~ 14A |
| Saturation Current Max. | 2.5 ~ 12A |
| Test Frequency | 100KHz/1.0V. |
