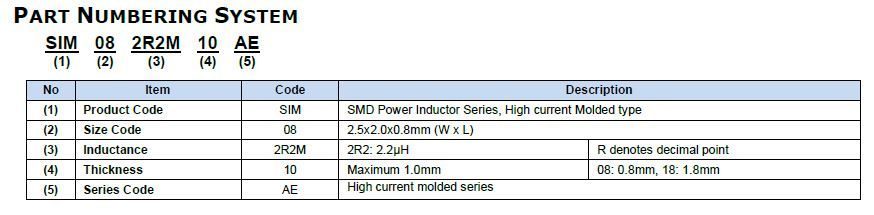

Series Number
|
SIM08-10AE
|
|
Description
|

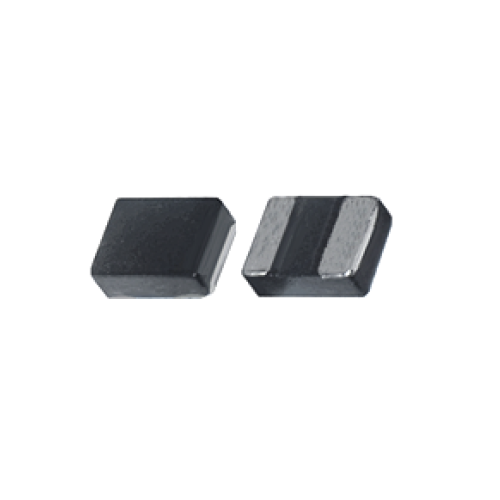

SMD Power Inductor Series, High current Molded type
|
|
Lead Free Status / RoHS Status
|
Lead free / RoHS Compliant
|
|
Moisture Sensitivity Level (MSL)
|
1 (Unlimited)
|
Product Characteristics
| Inductance | 2R2: 2.2µH |
| Tolerance | ±20% |
| DC Resistance Typical | 12 ~ 85mΩ |
| DC Resistance Max. | 14.4 ~ 102mΩ |
| Operating Temperature | -40 ~ 125 ˚C (including self-temperature rise) |
| Package / Case | SIM08-10AE |
| Applications | DC/DC Converters, Smart Phone, PAD, Power Supply |
| Mounting Type | Surface Mount |
| Saturation Current Typical | 3.0 ~ 7.3A |
| Saturation Current Max. | 2.7 ~ 7A |
| Heat Rating Current Typical | 2.8 ~ 6.6A |
| Heat Rating Current Max. | 2.5 ~ 6A |
| Test Frequency | 100KHz/1.0V. |
| Height | 0.8mm |
| Size | 2.5×2.0x0.8mm (W x L) |
| Features | High Saturation Current, Low DCR, High Efficiency |
| Packaging | Tape and Reel |
| Part Status | Active |
