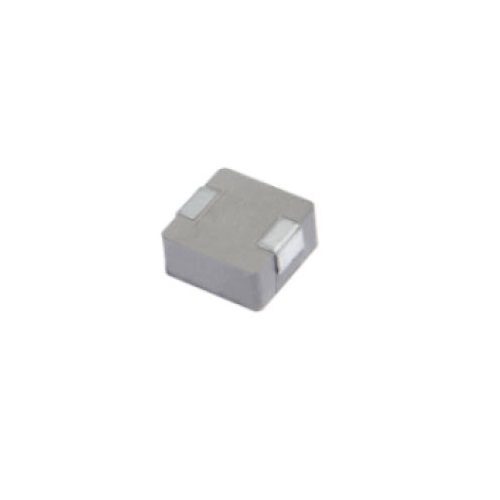

Series Number
|
PIM-0605A3
|
|
Description
|
Capable of Corresponding High Frequency, Ultra-Low Buzz Noise
|
|
Lead Free Status / RoHS Status
|
Lead free / RoHS Compliant
|
|
Moisture Sensitivity Level (MSL)
|
1 (Unlimited)
|
Product Characteristics
| Inductance | 0.47 ~ 33μH |
| Tolerance | ±20% |
| DC Resistance Typical | 2.9 ~ 142mΩ |
| DC Resistance Max. | 3.3 ~ 170mΩ |
| Peak Temperature | 245°C |
| Package / Case | 0605 |
| Applications | Notebook, PC, Servers, DC/DC Converter, High current converter, Battery powered devices |
| Mounting Type | Surface Mount |
| Saturation Current | 2.3 ~ 22A |
| Rated Current | 3.0 ~ 22A |
| Test Frequency | 100KHz |
| Size | 7.3mm x 6.6mm-Width x Height |
| Features | High Current, Low DCR, High Performance (Isat) |
| Packaging | Tape and Reel |
| Part Status | Active |
