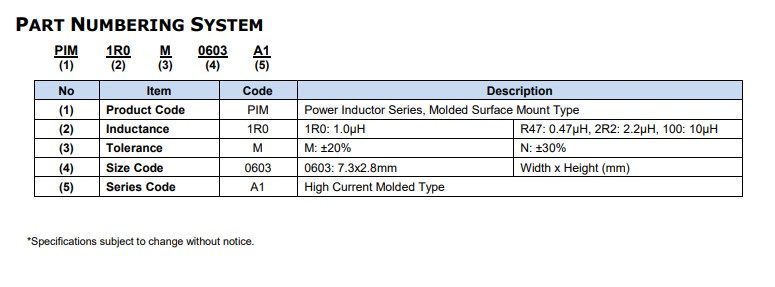

Series Number
|
PIM-0603A1
|
|
Description
|
0603SMD Molded Power Inductor – High Current
|
|
Lead Free Status / RoHS Status
|
Lead free / RoHS Compliant
|
|
Moisture Sensitivity Level (MSL)
|
1 (Unlimited)
|
|
Additional Information
|
– |
Product Characteristics
| Inductance | 0.1 ~ 22uH |
| Tolerance | +/-20~30% |
| DC Resistance Typical | 1.2 ~ 165mohm |
| DC Resistance Max. | 1.7 ~ 190mohm |
| Operating Temperature | -40 ~ 125 degC (see datasheet) |
| Package / Case | 0603 |
| Applications | Notebook, PC, Servers, DC/DC Converter, High current converter, Battery powered devices |
| Mounting Type | Surface Mount |
| Saturation Current | 3.5 ~ 60A |
| Rated Current | 2 ~ 32.5A |
| Test Frequency | 100KHz |
| Height | see datasheet |
| Size | 7.3mm x 2.8mm |
| Features | High Current, Low DCR, High Efficiency |
| Ratings | – |
| Series | PIM-0630A1 |
| Packaging | Tape and Reel |
| Part Status | Active |
