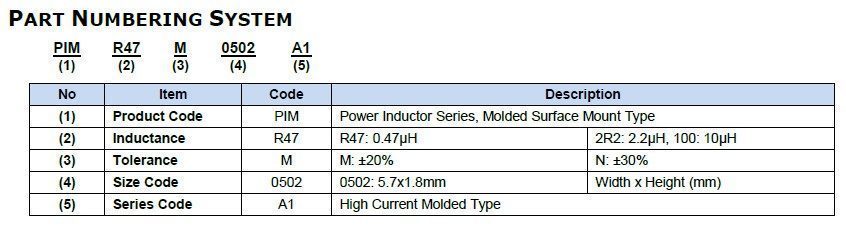

Series Number
|
PIM-0502MA1
|
|
Description
|
MOLDED INDUCTOR, 5.7X5.2X1.8mm AECQ
|
|
Lead Free Status / RoHS Status
|
Lead free / RoHS Compliant
|
|
Moisture Sensitivity Level (MSL)
|
1 (Unlimited)
|
Product Characteristics
| Inductance | 0.1 ~ 22μHMeritek Spec-PIM-0502A1 series-0c-201201 |
| Tolerance | ±20~30% |
| DC Resistance Typical | 3.6 ~ 350mΩ |
| DC Resistance Max. | 4.0 ~ 390mΩ |
| Operating Temperature | -55 ~ 125 ˚C (including self-temperature rise) |
| Package / Case | 0502 |
| Applications | Note PC Power System, incl. IMVP-6, DC/DC Converter |
| Mounting Type | Surface Mount |
| Saturation Current | 1.8 ~ 45A |
| Rated Current | 1.5 ~ 18A |
| Features | High Current, Low DCR, High Efficiency |
| Packaging | Tape and Reel |
| Part Status | Active |
