Series Number
|
PIM-0402AA2
|
|
Description
|

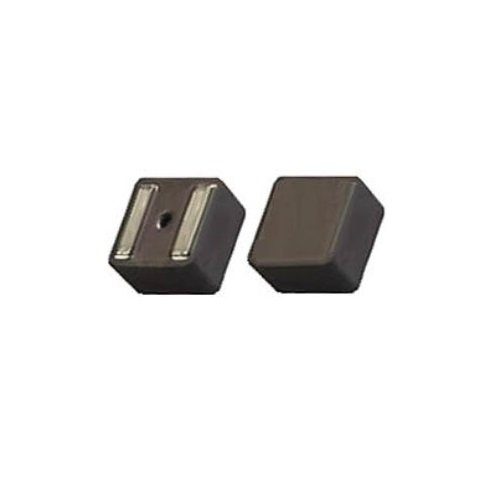

0402A SMD Molded Power Inductor – High Current, Low DCR
|
|
Lead Free Status / RoHS Status
|
Lead free / RoHS Compliant
|
|
Moisture Sensitivity Level (MSL)
|
1 (Unlimited)
|
|
Additional Information
|
–
|
Product Characteristics
| Inductance | 0.1 ~ 1.5uH |
| Tolerance | +/-20% |
| DC Resistance Typical | 2.2 ~ 21mohm |
| DC Resistance Max. | 2.42 ~ 23.5mohm |
| Operating Temperature | -40 ~ 125 degC (see datasheet) |
| Package / Case | 0402A |
| Applications | DC/DC Converter, PC Power System |
| Mounting Type | Surface Mount |
| Saturation Current | 8 ~ 38A |
| Rated Current | see datasheet |
| Test Frequency | 100KHz |
| Height | 1.9mm +/-0.2 |
| Size | 4.1mm x 4.1mm |
| Features | High Efficiency, Soft Saturation |
| Ratings | – |
| Series |
PIM-0402AA2
|
| Packaging | Tape and Reel |
| Part Status | Active |
