Part Number
|
PIF-33157S Series
|
|
Description
|

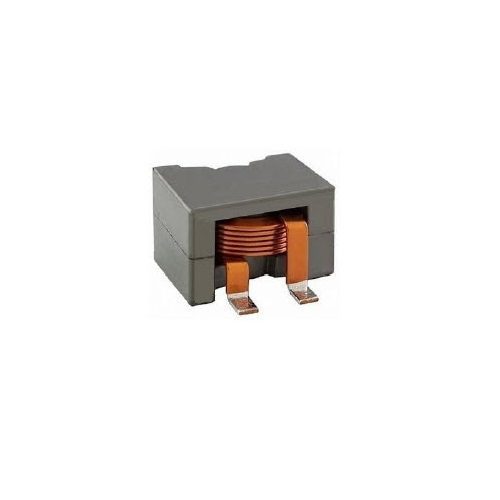

3315 Flat Wire Inductor
|
|
Lead Free Status / RoHS Status
|
Lead free / RoHS Compliant
|
|
Moisture Sensitivity Level (MSL)
|
1 (Unlimited)
|
|
Additional Information
|
–
|
Product Characteristics
| Inductance | 2.2~9uH |
| DCR +/-10% | 0.83~3mohm |
| Test Condition | 100KHz/0.1Vrms |
| Operating Temperature | -40 ~ 125 degC |
| Package / Case | 3315 |
| Applications | DC/DC Converter in Power Regulation System;PV Inverter |
| Mounting Type | Surface Mount |
| Temperature Rise Current (ADC) | 36~55 A |
| Saturation Current (ADC) | Please see specsheet for details |
| Size / Dimension | 35 x 15.5mm L x T (mm) |
| Features | Low Core Loss snd High Efficiency Performance |
| Series | PIF-33157S |
| Packaging | Bulk |
| Part Status | Active |
