Part Number
|
PIF-271xM7S Series
|
|
Description
|

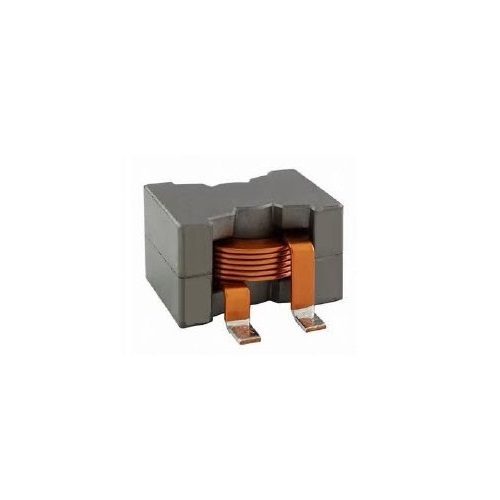

2714 Flat Wire Inductor
|
|
Lead Free Status / RoHS Status
|
Lead free / RoHS Compliant
|
|
Moisture Sensitivity Level (MSL)
|
1 (Unlimited)
|
|
Additional Information
|
–
|
Product Characteristics
| Inductance | 2.2uH |
| DCR +/-10% | 1.83mohm |
| Test Condition | 500KHz/0.1Vrms |
| Operating Temperature | -40 ~ 150 degC |
| Package / Case | 2714 |
| Applications | DC/DC Converter in Power Regulation System, PV Inverters |
| Mounting Type | Surface Mount |
| Temperature Rise Current (ADC) | 30 A |
| Saturation Current (ADC) | >100 A |
| Height (Max.) | 27.9 mm |
| Width | 19.7 mm |
| Size / Dimension | 27.9 x 14.22mm, L x T (mm) |
| Features | Superior Quality for an Automotive Product Line |
| Ratings | – |
| Series | PIF-271xM7S |
| Packaging | Bulk |
| Part Status | Active |
