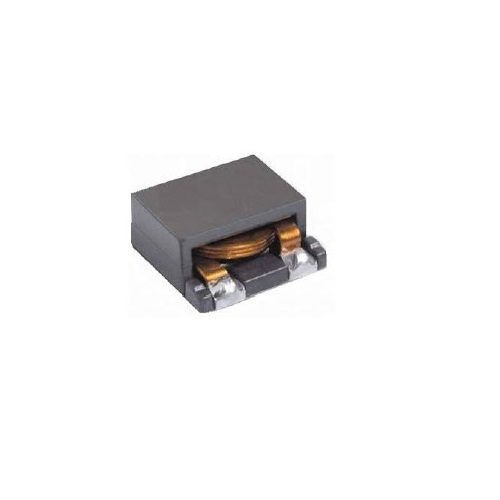

Part Number
|
PIF-10507R Series
|
|
Description
|
1050 Flat Wire Inductor
|
|
Lead Free Status / RoHS Status
|
Lead free / RoHS Compliant
|
|
Moisture Sensitivity Level (MSL)
|
1 (Unlimited)
|
|
Additional Information
|
–
|
Product Characteristics
| Inductance | 0.56~8.2uH |
| DCR +/-10% | 1.05~25mohm |
| Test Condition | 100KHz/0.1Vrms |
| Operating Temperature | -40 ~ 150 degC |
| Package / Case | 1050 |
| Applications | Notebook Computer, Motherboard, Routers, and Serve |
| Mounting Type | Surface Mount |
| Temperature Rise Current (ADC) | 4.8~22.5 A |
| Saturation Current (ADC) | 6.2~23.5A |
| Size / Dimension | 10.2 x 5mm L x T (mm) |
| Features | Pick And Place Compatible |
| Series | PIF-10507R |
| Packaging | Tape and Peel Packing |
| Part Status | Active |
