Part Number
|
SIF-18T
|
|
Description
|

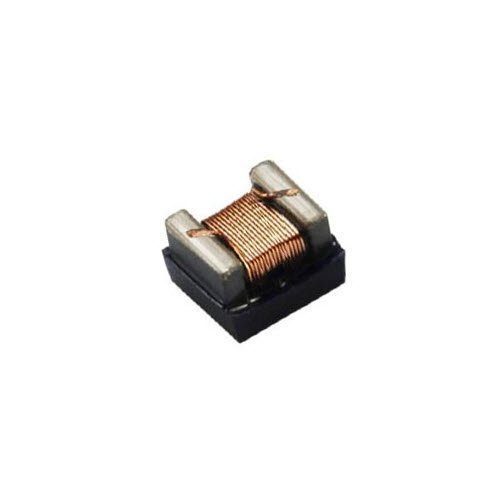

Chip Coil Inductor – Wire Wound Ferrite Signal Chip
|
|
Lead Free Status / RoHS Status
|
Lead free / RoHS Compliant
|
|
Moisture Sensitivity Level (MSL)
|
1 (Unlimited)
|
|
Additional Information
|
–
|
Product Characteristics
| Inductance | 0.047 ~ 680uH |
| Tolerance | +/-5%, +/-10%, +/-20% |
| DC Resistance (Max.) | 0.075 ~ 22 ohm |
| Rated Current (Max.) | 76 ~ 1400mA |
| Operating Temperature | -40 ~ 125 degC |
| Package / Case | 0603, 0805, 1008, 1210 |
| Applications | Power Line and Signal Line use |
| Mounting Type | Surface Mount |
| Inductance Test Frequency | 1 ~ 25.2 MHz |
| Factor Q (Min.) | 10, 12, 15, 20, 25, 30 |
| Q Test Frequency | 1 ~ 100 MHz |
| SRF (Min.) | 2.3 ~ 1500 MHz |
| Size / Dimension | 0603, 0805, 1008, 1210 |
| Features | Small Footprint and Low Profile |
| Ratings | – |
| Series | SIF-18T |
| Packaging | Tape and Reel |
| Part Status | Active |
