Series Number
|
SIM82-36
|
|
Description
|

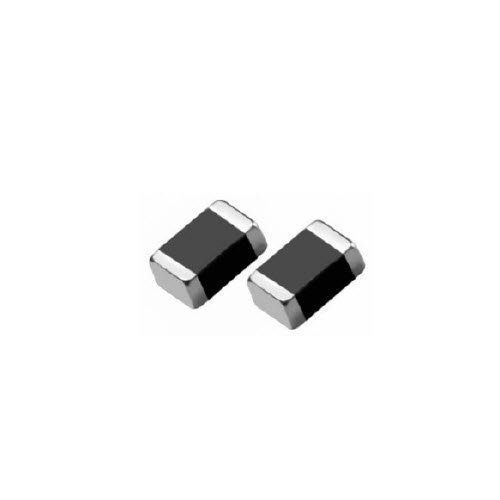

Ferrite Chip Bead High Current Type SMD
|
|
Lead Free Status / RoHS Status
|
Lead free / RoHS Compliant
|
|
Moisture Sensitivity Level (MSL)
|
1 (Unlimited)
|
|
Additional Information
|
–
|
Product Characteristics
| Impedance | 120 ~ 780Ohm |
| Tolerance | +/-25% |
| DC Resistance (Max.) | 0.040Ohm |
| Rated Current (Max.) | 3000mA |
| Operating Temperature | -55 ~ +125 degC |
| Package / Case | 1812 |
| Applications | General Purpose |
| Mounting Type | Surface Mount |
| Size / Dimension | – |
| Thickness (Max) | – |
| Test Frequency | 100MHz |
| Rating | High Current Type |
| Features | Noise Reduction Solution for Signal Line |
| Reel Size | – |
| Qty Per Reel (pcs) | – |
| Series | SIM82-36 |
| Packaging | Tape and Reel |
| Part Status | Active |
