Series Number
|
SIM01-32
|
|
Description
|

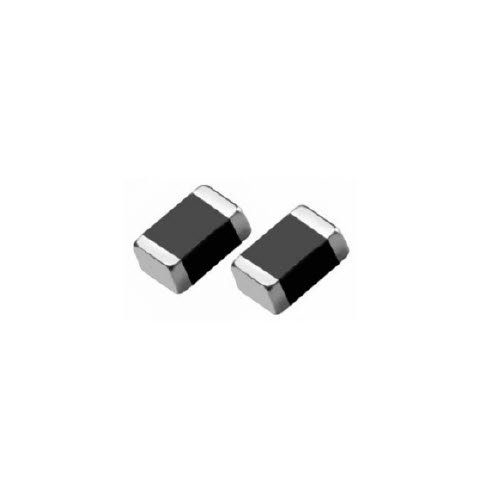

Ferrite Chip Bead
|
|
Lead Free Status / RoHS Status
|
Lead free / RoHS Compliant
|
|
Moisture Sensitivity Level (MSL)
|
1 (Unlimited)
|
|
Additional Information
|
–
|
Product Characteristics
| Impedance | 10 ~ 120Ω |
| Tolerance | +/-25% |
| DC Resistance (Max.) | 0.03 ~ 0.15Ω |
| Rated Current (Max.) | 850 ~ 1300mA |
| Operating Temperature | 40 ~ +125 °C |
| Package / Case | 0201 |
| Applications | General Purpose |
| Mounting Type | Surface Mount |
| Size / Dimension | 0.6×0.3mm |
| Thickness (Max) | – |
| Test Frequency | 100MHz |
| Rating | |
| Features | Excellent Solderability and Heat Resistance |
| Reel Size | 7 inches |
| Qty Per Reel (pcs) | 15,000 |
| Packaging | Tape and Reel |
| Part Status | Active |
