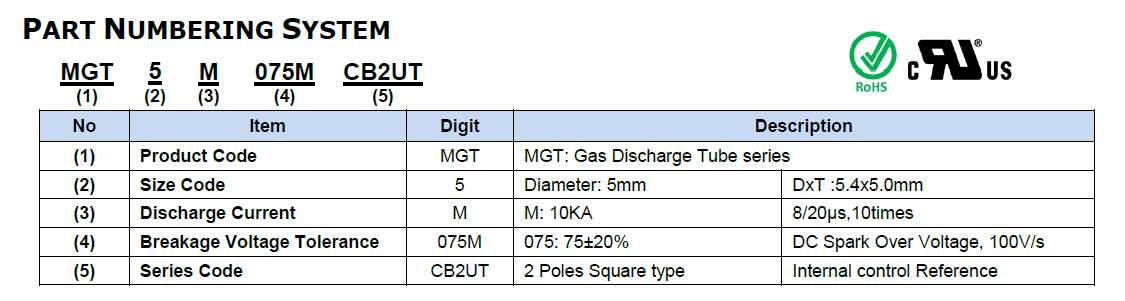

Series Number
|
MGT5-2UT
|
|
Description
|

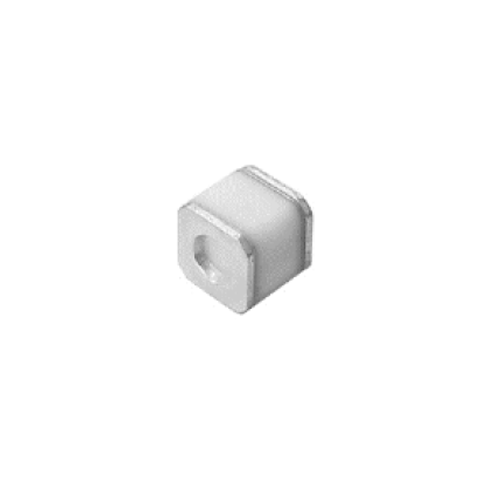

5.4 X 5mm 2 Poles Square Type
|
|
Lead Free Status / RoHS Status
|
Lead free / RoHS Compliant
|
|
Moisture Sensitivity Level (MSL)
|
1 , per J_STD-020
|
|
Additional Information
|
UL E223045
|
Product Characteristics
| DC Spark-over Voltage (@100V/S) | 75±20%~1500V±20% |
| Tolerance of DCBV | ±20% |
| Breakdown Voltage (@100V/s) | 75V±20% |
| Maximum Capacitance (@1MHz) | 1pF max. |
| Operating Temperature | -40°C ~ +90°C |
| Package / Case | Options available |
| Applications | Large Transient Current Absorbing Capability |
| Mounting Type | Surface Mount |
| Size / Dimension | DxT : 5.4x5mm |
| Impulse Spark-over Voltage max (1KV/μs) | 650~2800V |
| Impulse Discharge Current (@8/20μs) | 3~10KA |
| Features | Low capacitance(≤1pF) |
| Insulation Resistance | 25 ~ 500(VDC) |
| Packaging | Tape and Reel, Bulk |
| Part Status | Active |
