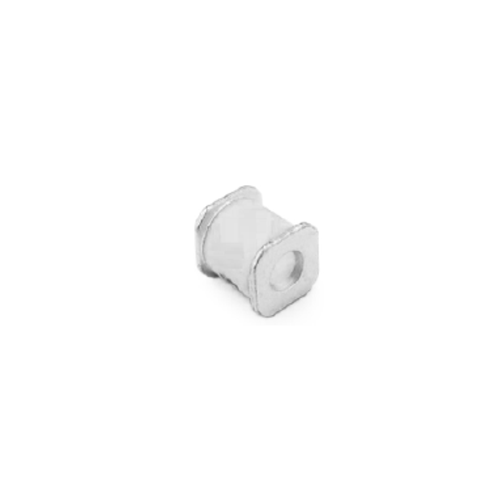

Series Number
|
MGT5-2S6
|
|
Description
|
5.6 X 6mm 2 Poles Square End
|
|
Lead Free Status / RoHS Status
|
Lead free / RoHS Compliant
|
|
Moisture Sensitivity Level (MSL)
|
1 , per J-STD-020
|
|
Additional Information
|
UL E223045
|
Product Characteristics
| DC Spark-over Voltage (@100V/S) | 1000~2500V±20% |
| Breakdown Voltage (@100V/s) | 1000V±20% |
| Electrode Capacitance (@1MHz) | 1.5pF max. |
| Operating Temperature | -40°C ~ +85°C |
| Package / Case | Options available |
| Applications | General Purpose |
| Mounting Type | Surface Mount |
| Size / Dimension | 5.6×6.0mm |
| Impulse Spark-over Voltage max (1KV/μs) | 1900~3600V |
| Impulse Life (@10/1Kμs) | 300Times |
| Impulse Discharge Current (@8/20us) | 3KA |
| Features | Low capacitance(≤1.5pf) |
| Insulation Resistance | 500 ~ 1000(VDC) |
| Packaging | Tape and Reel, Bulk |
| Part Status | Active |
