Part Number
|
MXJFJJI16M0
|
|
Description
|

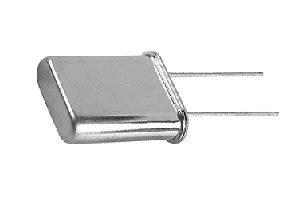

HC49S 20pF 50/50ppm -40/85C 16MHz
|
|
Lead Free Status / RoHS Status
|
Lead free / RoHS Compliant
|
|
Moisture Sensitivity Level (MSL)
|
1 (Unlimited)
|
|
Additional Information
|
|
Product Characteristics
| Frequency | 16.0MHz |
| Load Capacitance | 20pF |
| Frequency Tolerance | +/-50ppm |
| Frequency Stability | +/-50ppm |
| Operating Temperature | -40/85C |
| Storage Temperature | -55/125C |
| Package / Case | HC-49SMD |
| Applications | Wired Network, Mobile Communication, WiMAX, WLAN, Test Equipment |
| Mounting Type | Surface Mount |
| ESR – max. | 40ohm |
| Drive Level – max. | 1mW |
| Insulation Resistance (@100Vdc +/-15V) ? min | 500Mohm |
| Operating Mode | Fundamental, 3rd OT |
| Lead Style | |
| Dimensions | 11.40mm x 4.70mm x 4.20mm |
| Series | MXJ |
| Packaging | Tape and Reel/Ammo |
| Part Status | Active |
