Part Number
|
ME241B30U02A
|
|
Description
|

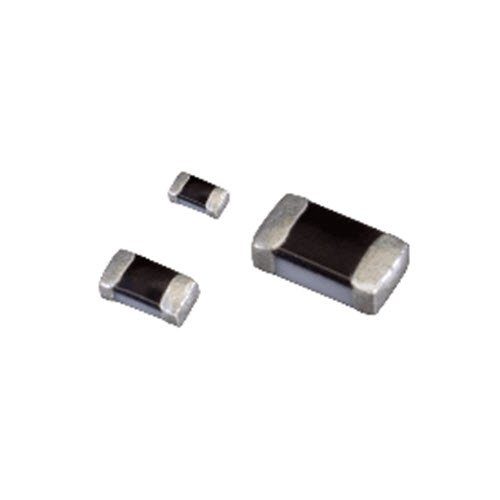

24V ESD Suppressor 1-Channel Bidirectional 30V Clamp 0.2pF 0402
|
|
Lead Free Status / RoHS Status
|
Lead free / RoHS Compliant
|
|
Moisture Sensitivity Level (MSL)
|
1 (Unlimited)
|
|
Additional Information
|
AEC-Q101 Automotive
|
Product Characteristics
| ESD Voltage – Contact (max.) | +/-8KV |
| ESD Voltage – Air (max.) | +/-15KV |
| Power – Peak Pulse | – |
| Current – Peak Pulse | – |
| Operating Temperature (degC) | -55~+125 |
| Mounting Type | Surface Mount |
| Package / Case | 0402 |
| Channels – Polarity | 1-Channel Bidirectional |
| Reverse Stand-Off Voltage (max.) | 24V |
| Peak Voltage | 300V |
| Leakage Current | 0.01uA |
| Clamping Voltage (typ.) | 30V |
| Clamping Voltage (max.) | – |
| Peak Pulse Current (max.) | – |
| Response Time (max.) | 1ns |
| Capacitance (typ.) | 0.2pF |
| Packaging | Tape and Reel |
| Part Status | Active |
