Part Number
|
ME54U12VS236
|
|
Description
|

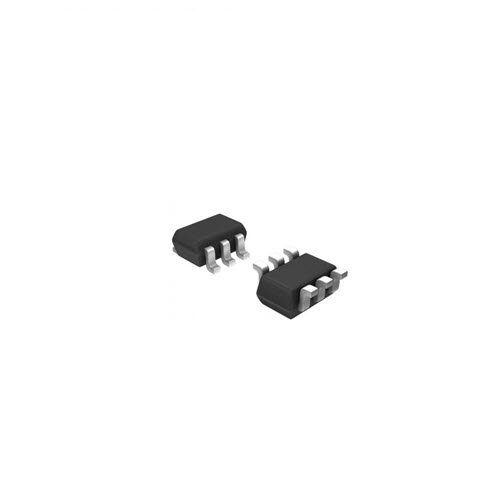

5V ESD Suppressor 4-Channel Unidirectional 12V Clamp 0.8pF (max.) SOT-23-6
|
|
Lead Free Status / RoHS Status
|
Lead free / RoHS Compliant
|
|
Moisture Sensitivity Level (MSL)
|
1 (Unlimited)
|
|
Additional Information
|
–
|
Product Characteristics
| ESD Voltage – Contact (max.) | +/-16KV |
| ESD Voltage – Air (max.) | +/-16KV |
| Power – Peak Pulse (tp=8/20us) | 45W |
| Current – Peak Pulse (tp=8/20us) | 3A |
| Operating Temperature (degC) | -40~+125 |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-6 |
| Channels – Polarity | 4-Channel Unidirectional |
| Reverse Stand-Off Voltage (max.) | 5V |
| Reverse Breakdown Voltage (min.) | 6V |
| Reverse Leakage Current (max.) | 1uA |
| Clamping Voltage (max.) | 12V |
| Clamping Voltage (max.) | 12.5V |
| Dynamic Resistance (typ.) | 0.2ohm |
| Forward Voltage (max.) | – |
| Capacitance (max.) | 0.8pF (max.) |
| Packaging | Tape and Reel |
| Part Status | Active |
