Part Number
|
ME53U11S363
|
|
Description
|
5V ESD Suppressor 3-Channel Unidirectional 8V Clamp 120pF (typ.) SOT-363
|
|
Lead Free Status / RoHS Status
|
Lead free / RoHS Compliant
|
|
Moisture Sensitivity Level (MSL)
|
1 (Unlimited)
|
|
Additional Information
|
–
|
Product Characteristics
| ESD Voltage – Contact (max.) | +/-30KV |
| ESD Voltage – Air (max.) | +/-30KV |
| Power – Peak Pulse (tp=8/20us) | – |
| Operating Temperature (degC) | -55~+150 |
| Mounting Type | Surface Mount |

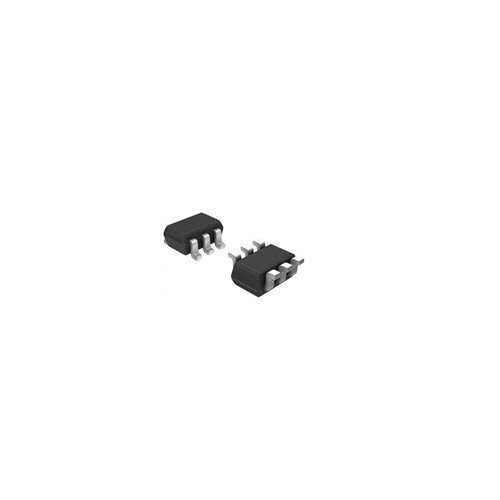

| Package / Case | SOT-363 |
| Channels – Polarity | 3-Channel Unidirectional |
| Reverse Stand-Off Voltage (max.) | 5V |
| Reverse Breakdown Voltage (min.) | 6V |
| Reverse Leakage Current (max.) | 1uA |
| Clamping Voltage (max.) | 8V |
| Clamping Voltage (max.) | 11V |
| Clamping Voltage TLP (typ.) | 8.28V |
| Clamping Voltage TLP (typ.) | 9.6V |
| Dynamic Resistance (typ.) | 0.17ohm |
| Capacitance (max.) | 120pF (typ.) |
| Packaging | Tape and Reel |
| Part Status | Active |
