Part Number
|
ME242B43S23A
|
|
Description
|
24V ESD Suppressor 2-Channel Bidirectional 43V Clamp 40pF (typ.) SOT-23
|
|
Lead Free Status / RoHS Status
|
Lead free / RoHS Compliant
|
|
Moisture Sensitivity Level (MSL)
|
1 (Unlimited)
|
|
Additional Information
|
Automotive, AEC-Q101
|
Product Characteristics
| ESD Voltage – Contact (max.) | +/-8KV |
| ESD Voltage – Air (max.) | +/-15KV |
| Power – Peak Pulse (tp=8/20us) | 350W |
| Current – Peak Pulse (tp=8/20us) | – |
| Operating Temperature (degC) | -55~+150 |
| Mounting Type | Surface Mount |

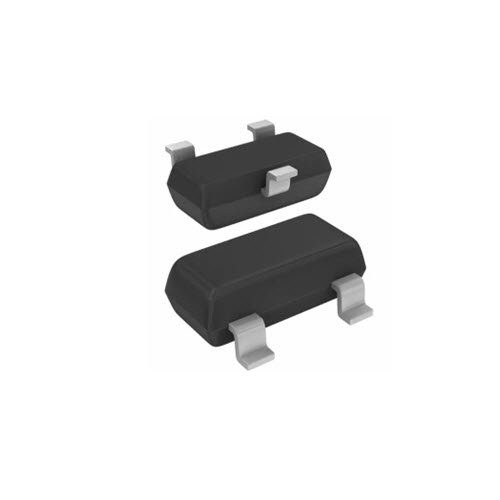

| Package / Case | SOT-23 |
| Channels – Polarity | 2-Channel Bidirectional |
| Reverse Stand-Off Voltage (max.) | 24V |
| Reverse Breakdown Voltage (min.) | 26.7V |
| Reverse Leakage Current (max.) | 1uA |
| Clamping Voltage (max.) | 43V |
| Clamping Voltage (max.) | 52V |
| Peak Pulse Current (max.) | – |
| Forward Voltage (max.) | – |
| Capacitance (max.) | 40pF (typ.) |
| Packaging | Tape and Reel |
| Part Status | Active |
