Part Number
|
ME124U19SO8
|
|
Description
|

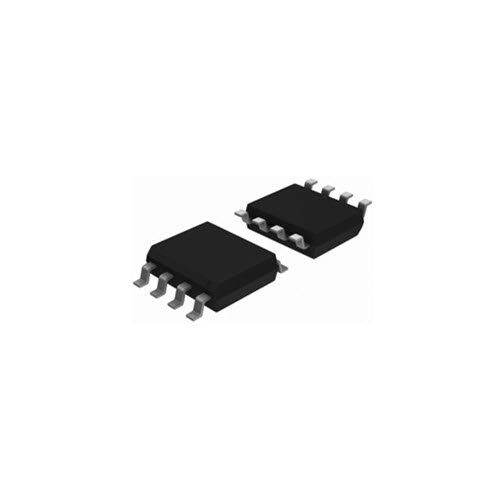

12V ESD Suppressor 4-Channel Unidirectional 19V Clamp 25pF (typ.) SOIC-08
|
|
Lead Free Status / RoHS Status
|
Lead free / RoHS Compliant
|
|
Moisture Sensitivity Level (MSL)
|
1 (Unlimited)
|
|
Additional Information
|
–
|
Product Characteristics
| ESD Voltage – Contact (max.) | +/-8KV |
| ESD Voltage – Air (max.) | +/-15KV |
| Power – Peak Pulse (tp=8/20us) | – |
| Current – Peak Pulse (tp=8/20us) | 20A |
| Operating Temperature (degC) | -55~+150 |
| Mounting Type | Surface Mount |
| Package / Case | SOIC-08 |
| Channels – Polarity | 4-Channel Unidirectional |
| Reverse Stand-Off Voltage (max.) | 12V |
| Reverse Breakdown Voltage (min.) | 13.4V |
| Reverse Leakage Current (max.) | 4uA |
| Clamping Voltage (max.) | 19V |
| Clamping Voltage (max.) | 32.9V |
| Peak Pulse Current (max.) | – |
| Forward Voltage (max.) | – |
| Capacitance (max.) | 25pF (typ.) |
| Packaging | Tape and Reel |
| Part Status | Active |
