Series Number
|
ES1A~ES1K
|
|
Description
|

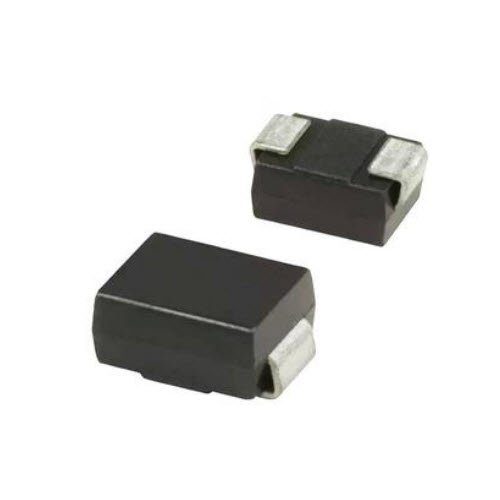

Diode – Superfast Recovery Rectifier 1.0A DO-214AC SMA Package
|
|
Lead Free Status / RoHS Status
|
Lead free / RoHS Compliant
|
|
Moisture Sensitivity Level (MSL)
|
1 (Unlimited)
|
|
Additional Information
|
–
|
Product Characteristics
| Reverse DC Voltage | 50 ~ 800V |
| Forward Current | 1.0A |
| Max Forward Voltage | 0.95 ~ 1.70V |
| Peak Forward Surge Current | 30A |
| Operating Temperature | -65 ~ 150 °C |
| Package / Case | DO-214AC SMA |
| Applications | General Purpose |
| Mounting Type | Surface Mount |
| Max Reverse Current @ 25°C | 5.0uA |
| Thermal Resistance | 35 °C/W |
| Junction Capacitance | 8 ~ 10pF |
| Max Reverse Recovery Time | 35ns |
| Power Dissipation | – |
| Features | Low profile package |
| Ratings | – |
| Series | ES1A~ES1K |
| Packaging | Tape and Reel |
| Part Status | Active |
