Series Number
|
KBPC1
|
|
Description
|

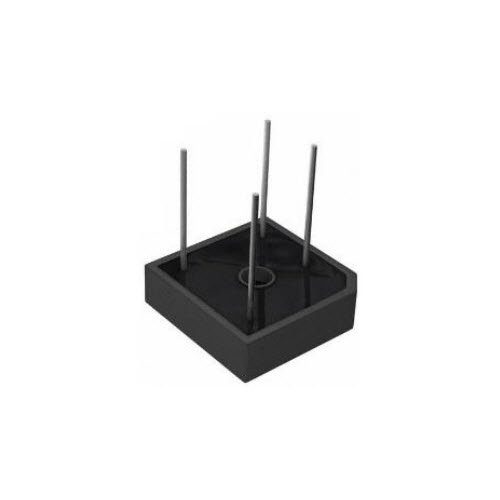

Single Phase Bridge Rectifier – 3.0A KBPC1 Package
|
|
Lead Free Status / RoHS Status
|
Lead free / RoHS Compliant
|
|
Moisture Sensitivity Level (MSL)
|
1 (Unlimited)
|
|
Additional Information
|
UL E223027
|
Product Characteristics
| Max Reverse Voltage | 50 ~ 1000V |
| Max Forward Current | 3.0A |
| Max Forward Voltage | 1.1V |
| Peak Forward Surge Current | 50A |
| Operating Temperature | -55 ~ 150 °C |
| Package / Case | KBPC1 |
| Applications | General Purpose |
| Mounting Type | Through Hole |
| Rating for Fusing | 10 A2sec |
| Reverse Current @25?C | 10uA |
| Thermal Resistance | 9.4 °C/W |
| Junction Capacitance | 55pF |
| Isolation Voltage | – |
| Features | Flammability Classification 94V-0 |
| Ratings | UL E223027 |
| Series | KBPC1 |
| Packaging | Bulk |
| Part Status | Active |
