Series Number
|
RWSF-T2
|
|
Description
|

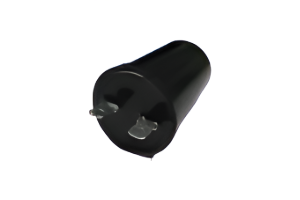

Segmented Film Capacitor – Tab Terminal
|
|
Lead Free Status / RoHS Status
|
Lead free / RoHS Compliant
|
|
Moisture Sensitivity Level (MSL)
|
1 (Unlimited)
|
|
Additional Information
|
UL E311150
|
Product Characteristics
| Capacitance | 0.001 – 10uF |
| Tolerance | +/-5% |
| Voltage – Rated | 275Vac |
| Dielectric | Segmented Metallized Film |
| Operating Temperature | -25 ~ 85 °C |
| Package / Case | Radial Can |
| Applications | AC Voltage |
| Mounting Type | Tab Terminal |
| Size / Dimension | Diameter: 35.5, 45.5mm |
| Height – Seated (Max) | – |
| Thickness (Max) | – |
| Lead Spacing | – |
| Lead Style | – |
| Features | – |
| Load Life | 1000 Hours @ 85 °C |
| Series | RWSF-T2 |
| Packaging | Bulk |
| Part Status | Active |
