Series Number
|
MHD
|
|
Description
|

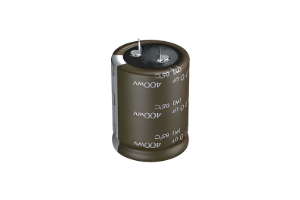

Snap-In Aluminum Electrolytic Capacitor – Low Profile, 2000 hours at 85°C
|
|
Lead Free Status / RoHS Status
|
Lead free / RoHS Compliant
|
|
Moisture Sensitivity Level (MSL)
|
1 (Unlimited)
|
|
Additional Information
|
–
|
Product Characteristics
| Capacitance | 47 – 560uF |
| Tolerance | +/-20% |
| Voltage – Rated | 160 – 400 VDC |
| Dielectric | – |
| Operating Temperature | -40~85 °C (see datasheet) |
| Package / Case | Radial Can |
| Applications | General Purpose |
| Mounting Type | Through Hole |
| Size / Dimension | 22, 25, 30, 35mm Diameter |
| Height – Seated (Max) | 20mm |
| Thickness (Max) | – |
| Lead Spacing | (see datasheet) |
| Lead Style | Snap-In |
| Features | Low Profile |
| Load Life | 2000 Hours @ 85 °C |
| Series | MHD |
| Packaging | Bulk |
| Part Status | Active |
