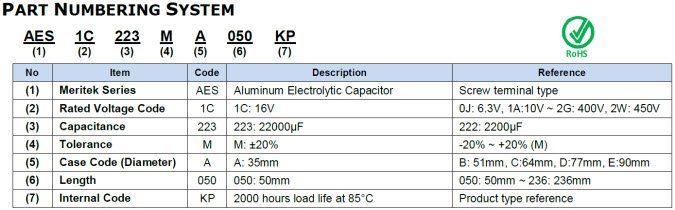

Series Number
|
AES-KP
|
|
Description
|

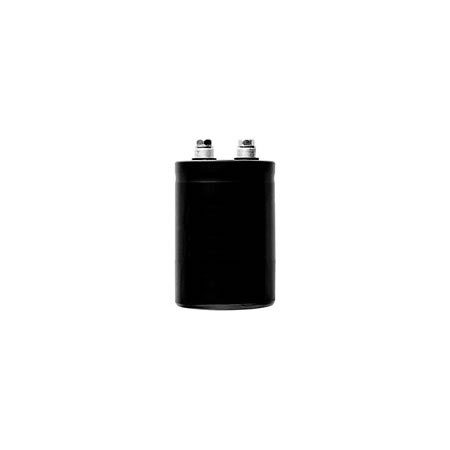

Aluminum Electrolytic Capacitor – 2000 hours at 85°C
|
|
Lead Free Status / RoHS Status
|
Lead free / RoHS Compliant
|
|
Moisture Sensitivity Level (MSL)
|
1 (Unlimited)
|
|
Additional Information
|
–
|
Product Characteristics
| Capacitance | 270 – 680000uF |
| Tolerance | +/-20% |
| Voltage – Rated | 6.3 – 450V |
| Dielectric | – |
| Operating Temperature | -40 ~ 85 °C (see datasheet) |
| Package / Case | Radial Can |
| Applications | General Purpose |
| Mounting Type | Chassis Mount |
| Size / Dimension | Diameter: 35, 51, 64, 77, 90mm |
| Height – Seated (Max) | – |
| Thickness (Max) | – |
| Lead Spacing | – |
| Lead Style | Screw Terminal |
| Features | High Ripple Current |
| Load Life | 2000 Hours @ 85 °C |
| Series | AES-KP |
| Packaging | Bulk |
| Part Status | Active |
